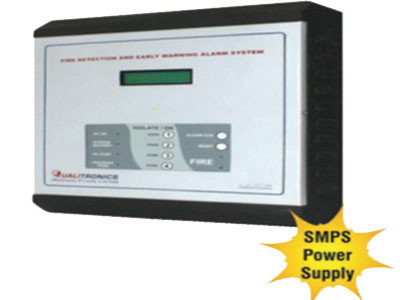

Features
  • Designed as per IS 2189 specifications
  • User friendly in handling the panel
  • SMPS power supply with inbuilt battery charger
  • Operates on 12VDC
  • 16×2 LCD display to indicate zone status such as loop open, loop short circuit, fire, zone isolation, alarm acknowledgement and low battery
  • LED indications for AC On, System on Battery, DC fuse, Charger fuse and Fire
  • Control switches for zone isolation, alarm acknowledgement and system reset.
  • Internal Buzzer for warning – zone short, low battery and alarm acknowledged
  • Auto – Dialer Connectivity
  • Hooter audibility is 90dB @ 1 meter
  • 48 hrs battery back up
  • Easy Installation and maintenance (modular type circuit boards)
Specifications
Input voltage 230V AC
Zone voltage 12V DC
Power 20W @ 230 V AC
Quiescent current 70mA @ 12V DC
Alarm Current 300mA @ 12V DC
