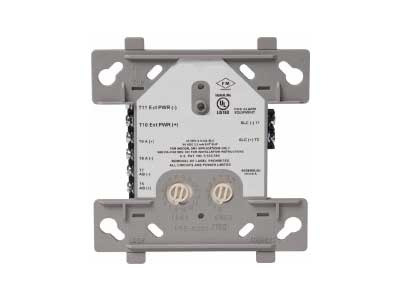

The CMF-300 Addressable Control Module provides Fire•Lite intelligent control panels a circuit for Notification Appliances (horns, strobes, etc.). Addressability allows the CMF-300 to be activated through panel programming, on a select (zone or area of coverage) basis.
LiteSpeed™ is a communication protocol developed by Fire•Lite Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs.
Normal operating voltage: 15 to 32 VDC.
Maximum SLC current draw: 6.5 mA (LED on).
Average operating current: 350 μA direct poll (CLIP mode), 375 μA group poll (LiteSpeed mode) with LED flashing.
External supply voltage: maximum 80 volts (RMS or DC).
Drain on external supply: 2 mA maximum (using internal EOL relay).
EOL resistance: 47K ohms.
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% non-condensing.
Dimensions: 4.5″ (11.43 cm) high x 4″ (10.16 cm) wide x 1.25″ (3.175 cm) deep. Mounts to a 4″ (10.16 cm) square x 2.125″ (5.398 cm) deep box.
